The Case Controller 200 (CC200) is a microprocessor-based controller for use in controlling temperature and Superheat in refrigerated fixtures and walk-in boxes. The controller is suitable for medium and low temperature applications and can control all loads in a refrigerated box or fixture for up to three evaporator coils. These include lighting, fans, defrost heaters, solenoid valves, stepper valves, and pulse width modulation valves.

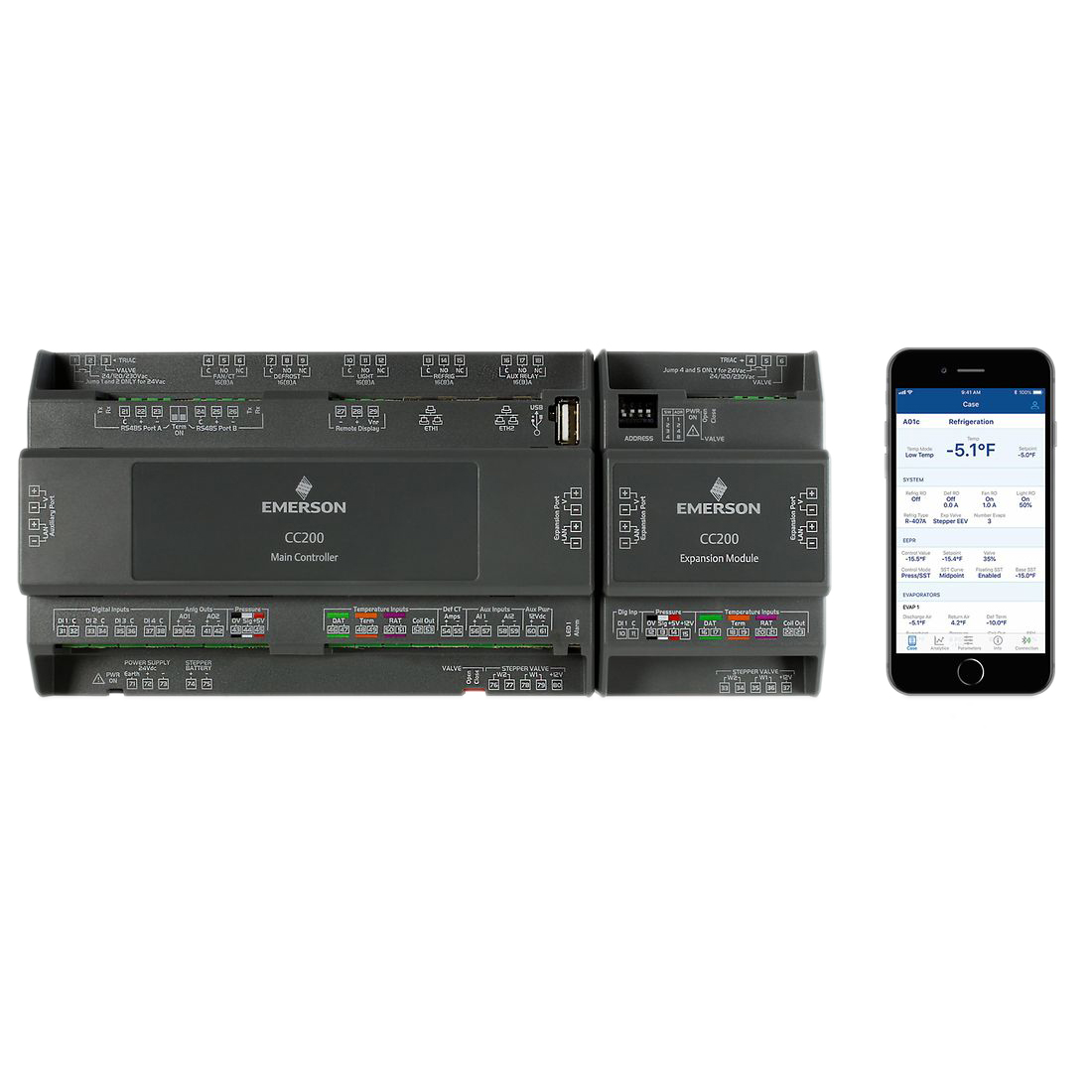

The CC200 control system consists of at least one CC200, one CC200 Case Display and optionally up to three CC200 Expansion Modules (CEM) depending on the case installation. When more than one case or fixture is used within the refrigeration circuit, the Case Controller can communicate critical information between other peer controllers in the lineup. This peer communication allows the CC200 to efficiently coordinate defrost, monitor temperatures, collect data, and offer sensor redundancy to keep the system running at all times.
The controller can be integrated into a supervisory controller and is currently integrated into the Copeland E2E and E3 Supervisory controllers using BACnet and Modbus. While integrated with E2E or E3, the CC200 runs completely stand-alone and requires no supervisory controller instructions or commands.
Features:
- Modular Design - Plug-in expansion modules allow for seamless installation and integration with your refrigeration setup
- Bluetooth connectivity allows for easy controller status check and service
- Standalone technology with antisweat control, leak detection and demand defrost
- Intuitive interface allows for customization of display and easy control setting
- Communicates with supervisory controllers allowing for remote access, setpoint configuration and alarming
Specifications:
- Power Requirements: 24VDC
- Power Supply: SELV/ Class 2 Source, 24VDC
- Rated Impulse Voltage: 0.5 kV (Main supply side) / 2.5kV (Loads side)
- Rated Impulse Voltage: Ambient Operating Temperature
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: 20 to 85% 20 to 85% RH; non-condensing
- Mounting: DIN Rail
- Dimensions Enclosure: 7 3/16” x 4 5/16” x 3” (W x H x D) Type 1
Part Number: 810-3180
