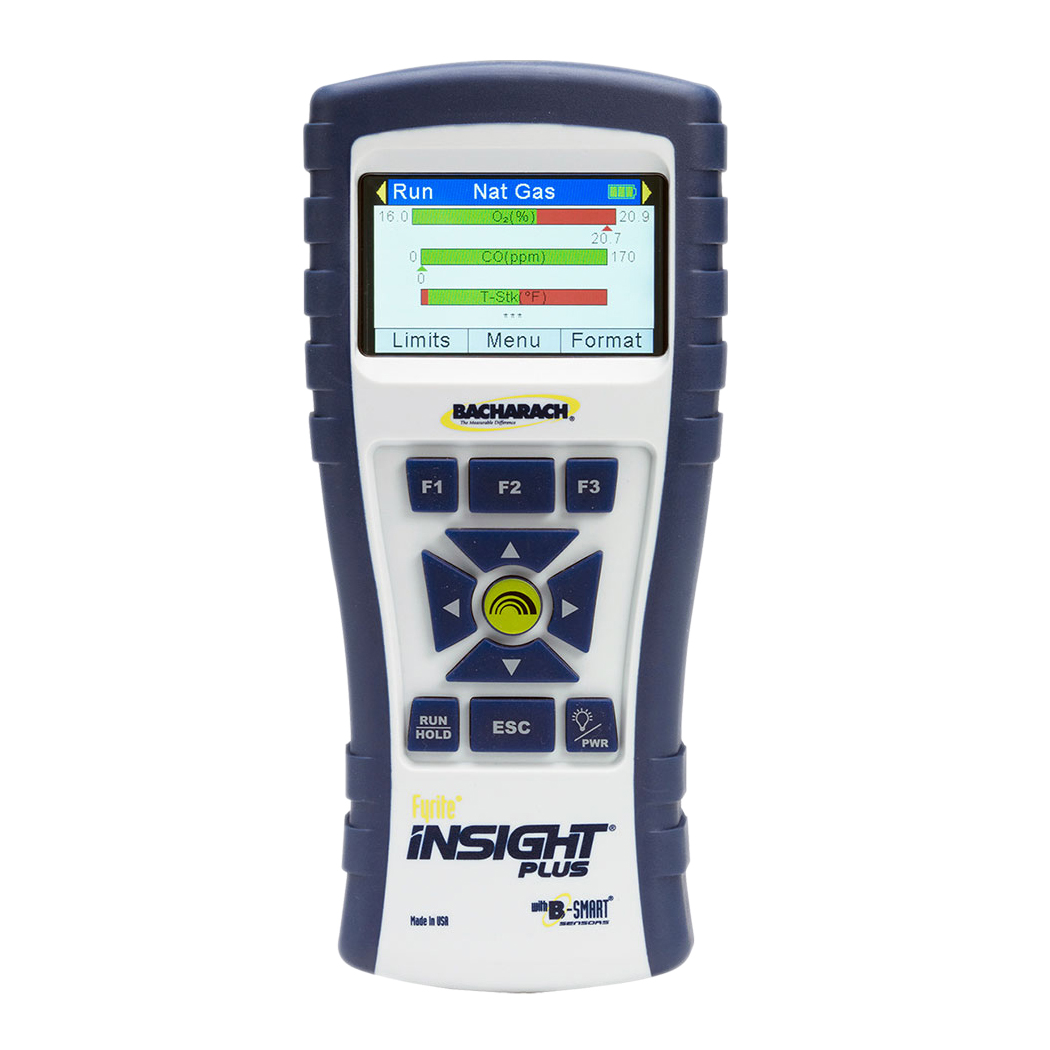

Insight Plus Combustion Analyzer
Handheld Combustion Analyzer for Commercial Applications
The Insight Plus is the perfect instrument for busy residential / light-commercial technicians who need to ensure safe operating conditions and determine combustion efficiency.
- All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, temperature and draft
- Industry-exclusive Tune-Rite HVAC assistant analyzes combustion data and provides real-time troubleshooting suggestions
- Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
- Long life O2 sensor with 3 year warranty reduces maintenance costs and downtime
- Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas
- Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)
The Insight® Plus is the perfect tool for busy residential / light-commercial technicians who need to ensure safe operating conditions and determine combustion efficiency. Powered by innovative Tune-Rite® software (patent pending), the industry’s first-ever on-demand HVAC “assistant,” the Insight® Plus helps both new and seasoned technicians save money by making more thorough and efficient service calls.
The Insight® Plus includes sensors for Oxygen (O2) and Carbon Monoxide (CO), which includes a built-in NOx filter. The CO sensor can be replaced in the field without down time using pre-calibrated sensors. O2 sensors carry a 2 or 3 year warranty depending on the sensor installed. O2 sensors are field replaceable and do not require calibration. The Insight® Plus calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.
All Kits Include:
- Probe with 12 in. (30 cm) Sample Tube (approx. 6 ft. (1.8 m) total length), Water Trap, Particulate Filter and Probe Stop
- Spare Filters (qty. 3)
- Protective Rubber Boot
- 4 × AA Batteries
- User Manual
- Hard Carrying Case
Product Specifications:
- Sensors: Up to 2
- Measuring Range: O2 0 To 20.9%, CO 0-4000 ppm
- Stack Temperature: -4 to 1202 °F (-20 to 650 °C)
- Draft / Differential Pressure: ± 40 inH2O (±10 mbar)
- User Interface: Color LCD w/ backlight
- Display Size: 2.8 in (72 mm)
- Power: 4 × Alkaline Batteries
- Run Time: 15 Hours (Alkaline Batteries)
- Warm-Up Time: 30 To 60 Seconds
- Digital Communications: USB 2.0 (mini-B), IrDA
- Ambient Temperature: 23 to 113 °F (-5 to 45 °C)
- Humidity: 15 to 90% RH (non-condensing)
- Altitude: 1 ATM ± 10%
- Product Dimensions (L×W×H): 8" × 3.6" × 2.3" (20.3 × 9.1 × 5.8 cm)
- Product Weight: 1 lb. (0.45 kg) including batteries
- Fuel Equations: Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel, +2 optional custom fuels
- Approvals: CE, EN 50379-1, EN 50379-3
- Internal Memory: 100 Records
- Warranty: Instrument: 2 Years (Including Sensors), O2 Sensor: 3 Years (Long-life Sensor, If Equipped)
- Printer: IrDA + Bluetooth Printer (Optional)
- Country of Origin: United States
- Configuration: Siegert (European) Configuration
- Part Number: 0024-8521
