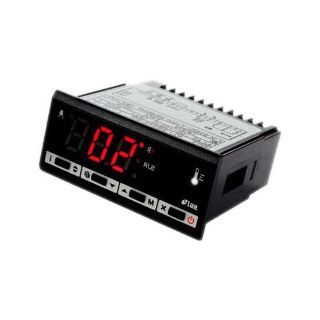

AT1-5
Refrigeration Controller for HT Applications
Main Features
- Selectable Refrigerating or Heating control
- Integrated defrost functions
- Runs on mains power supply
- Direct compressor control through high power 16(4)A or 16(8)A relay
- Selectable NTC10K or PTC probe input
- Auxiliary output configurable in four different operation modes
- Temperature, door open alarms
- Optional light control button
- Connectivity to LAE supervisory systems
- UL approved
- General purpose temperature & defrost control
- Replaces the function of a line voltage thermostat & a defrost clock
- A high capacity relay for compressor control (8 amp inductive)
- A second relay for defrost, lights, or alarm output
- One temperature sensor input for control, plus a second temperature sensor input for defrost termination
- A door switch input for control logic and alarm monitoring
- 230VAC power supply.
- Quick programming through ZOT-AT1-5 key
Applications
Freestanding upright cabinets and counters, cold stores, plug-in display cases, control panels, heated cabinets.
Part Number: AT1-5BS6E-AG
